MeLE Quieter HD3Q: The Affordable Mini PC
MeLE Technologies has released a new Mini PC called Quieter HD3Q. This Mini PC is equipped with Intel hardware, and it features an internal HD mounting compartment. With passive cooling, the Mini PC operates silently without any moving parts like a fan, ensuring a quieter user experience.
MeLE Quieter HD3Q Specifications | ||
Model | PCG33-N5105-8GB-128GB | |
CPU | Code | (11th Gen Intel® Processors) |
Total Cores | 4 | |
Total Threads | 4 | |
Cache | 4 MB L3 Cache | |
Freq | 2.00 GHz - 2.90 GHz | |
TDP | 10W | |
GPU | Processor Graphics | Intel® UHD Graphics |
Graphics Base Frequency | 450 MHz | |
Graphics Base Frequency | 800 MHz | |
Max Resolution | 4096x2160@60Hz | |
Execution Units | 24 | |
Operating System | Window 11 Pro preinstalled, supports Windows 10 Pro/home, Ubuntu 20.04, and Debian. | |
BIOS | • Support S5 RTC Wake • Support Wake On LAN • Support disabling Quiet Boot • Power Limit 1=10W, Power Limit 2=15W
| |
Memory | Memory Size | 8GB |
Memory Speed | 2933 MHz | |
Memory Type | LPDDR4x | |
Storage | eMMC | 128GB eMMC/256GB eMMC On board |
Micro SD card slot | Micro SD Slot up to 2 TB | |
SSD Slot | M.2 22x80 Key M Slot for PCIe3.0 For NVMe SSD | |
SATA Interface | 2.5" SATA Bay - Support HDD/SSD up to 4TB. | |
Graphics Outputs | HDMI output | 2 x HDMI 2.0 |
VGA | 1 x VGA | |
Audio | Audio output | Intel® High Definition Audio via HDMI. |
Audio Input | Micphone (Combo with 3.5mm earphone). | |
Connectivity | WiFi | Intel® Wi-Fi 6 AX201 |
Bluetooth | BT5.2 built-in with WiFi module. | |
Ethernet | 10/100/1000Mbps RJ-45 (Realtek RTL8111H) | |
USB Ports | USB Type-C | USB Type-C( Data transmission only,USB3.2 Gen 1=5Gbps) ×1pc |
USB 3.0 | 2 x USB3.2 Ports (Gen2) | |
USB 2.0 | 2 x USB2.0 Ports | |
Power Button | On/Off | Power Button |
Power Indicator | Power Indicator | Power off: Red indicator |
BIOS Reset button | BIOS Reset button | 1 x Bios reset button |
VESA Bracket | VESA Mount | Support 75mm and 100mm mounting holes. |
Anti-Theft Key Lock Hole | Support Kensington Security Lock Slot | |
CMOS battery | None-Rechargable | Non-rechargeable Lithium-Manganese battery CR2032× 1 |
Power Supply | 12V/2A DC ( Voltage Range12V-23V), including US/EU plug | |
Hardware
This compact fanless PC boasts impressive specifications, including 512 GB of lightning-fast eMMC storage, a powerful Jasper Lake Celeron N5105 processor (4C / 4T up to 2.90GHz), and a generous 16 GB of RAM. Priced at approximately $310, it offers incredible value for its feature-rich design. With two HDMI ports, a VGA connector, two USB 3.0 ports, two USB 2.0 ports, Ethernet connectivity, and passive fanless cooling.
MeLE provides a variety of hardware configurations, including the Quieter HD3Q model that comes with a powerful Intel Celeron N5105. Each model is capable of upgrading the CPU with a different PCB, either a lower or high-end one. The slim cases are specifically designed for easy mounting behind displays, thanks to their lightweight and compact dimensions.
MeLE Quieter Mini PC Series – Model Comparison
Model Comparison | ||||
Product Photo |  |  |  |  |
Model | Quieter2Q /2D | Quieter3Q | Quieter3C | Quieter HD3 |
CPU | Celeron J4125 /N4000 | Celeon N5105 | Celeon N5105 | Celeon N5105 |
RAM /ROM Options | 4GB+ 64GB 4GB+128GB 8GB+128GB 8GB+256GB 8GB+512GB | 8GB+128GB 8GB+256GB 8GB+512GB | 8GB+128GB 8GB+256GB 8GB+512GB | 8GB+128GB 8GB+256GB 8GB+512GB 16GB+512GB |
Connectivity | Wifi5 2.4G/5.0G | Wifi6 2.4G/5.0G | Wifi6 2.4G/5.0G | Wifi6 2.4G/5.0G |
Unlocked Bios |  | | | |
M.2 22x80 Key M Slot | | | | |
2.5-inch HDD SATA Bay |  | | | |
USB Port | 4*USB 3.0 | 4*USB 3.0 | 3*USB 3.0 | 2*USB 3.0 2*USB 2.0 |
Mini DP/ VGA | | | 1*Mini DP | 1* VGA |
HDMI Port | 2*HDMI 2.0 | 2*HDMI 2.0 | 1*HDMI 2.0 | 2*HDMI 2.0 |
USB-C | Only for DC-IN | Only for DC-IN | DC-IN PD3.0/Data transfer/Video Display | Only for Data transmit |
Design
The outer shell of the device case is made from ABS plastic with a lower aluminum plate that functions like a giant heat sink, mounted on top of the PCB CPU and RAM components, and is responsible for efficiently cooling them. The lower bottom of the unit is made of aluminum, so you get a pretty solid design for the buck.

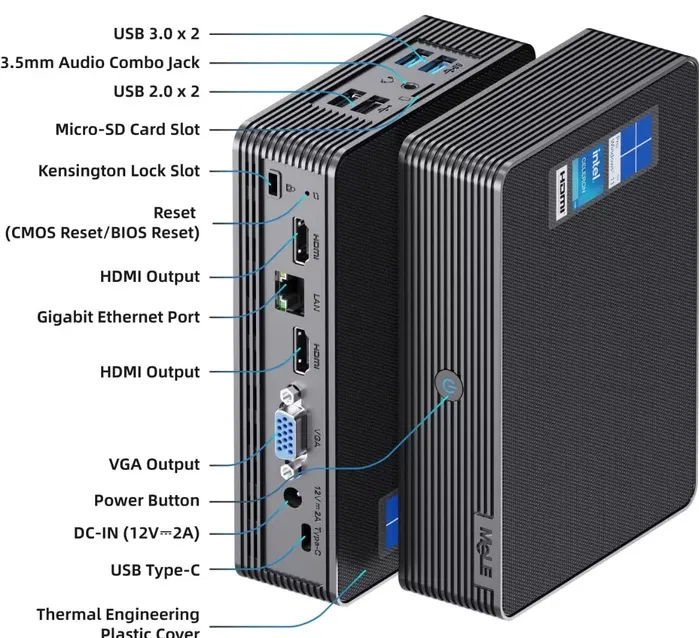

Interfaces & Storage
This small mini PC offers plenty of storage options for those concerned about running out of space. With the ability to add a Micro SD card slot separately, the storage can be expanded up to 2 TB. Additionally, there is an internal M.2 22×80 Key M Slot that can support an SSD capacity of up to 4 TB.

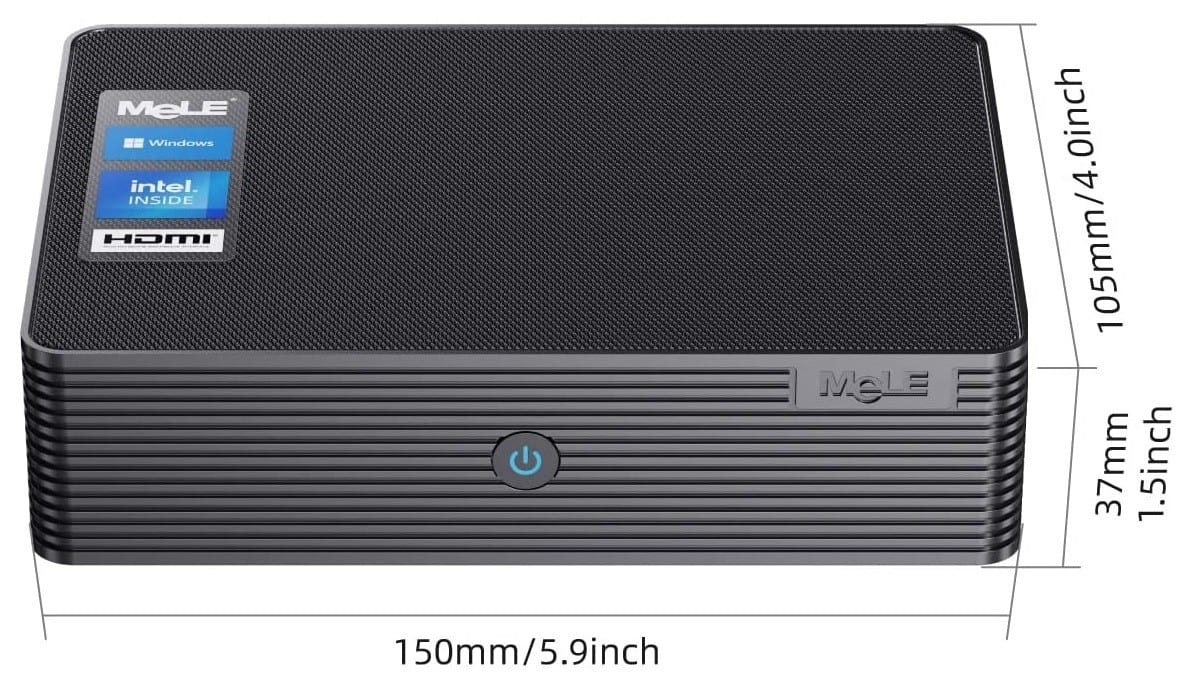

Size it everything
Expect the hardware specifications of the device to rival those of a high-level PC. This means you can use it as a window or Linux workstation, whether it’s placed on a small table or discreetly mounted behind a computer monitor or TV. Not only is the case design sleek and stylish, but it’s also compact, measuring just 150 x 105 x 37 mm.
MeLE Quieter HD3Q
In addition, the device has the capability to connect with a surveillance IP camera that operates on either Linux or Windows OS. It can also serve as a home multimedia device, allowing you to stream videos from popular streaming services like Netflix, YouTube, Spotify, and more.

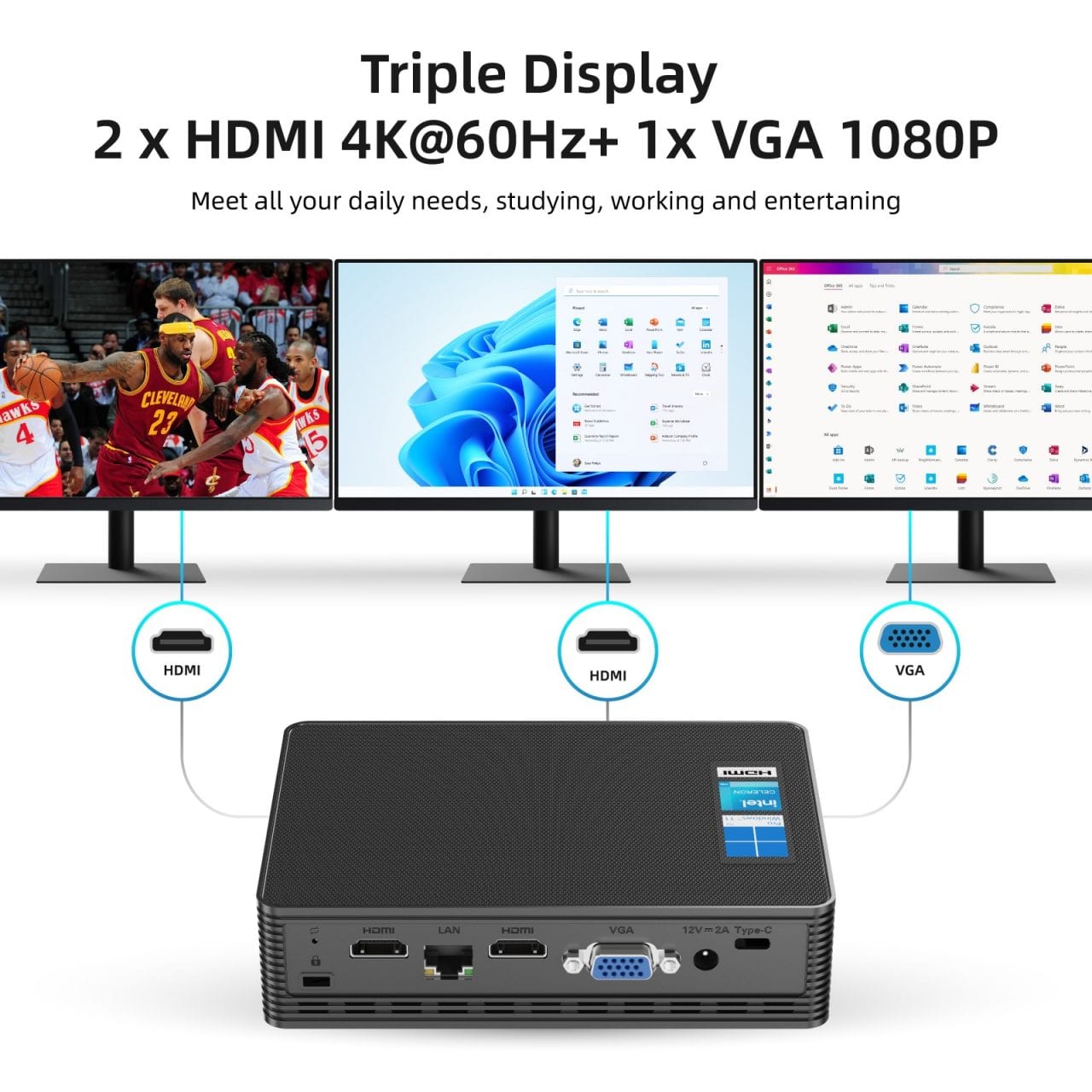

Triple Video Displays Support
(Dual HDMI + A third VGA Video output)
With two HDMI 2.0 ports and a VGA port at your disposal, you have the capability to connect three displays at once and enjoy the convenience of three separate Windows desktop environments.
Software Support
The Quieter HD3Q not only provides support for Windows 10/11 operating systems but also allows you to run various other operating systems like Linux (Ubuntu/Debian). By using this advanced device, you have the freedom to choose from a wide range of options without restricting yourself to a single operating system.
