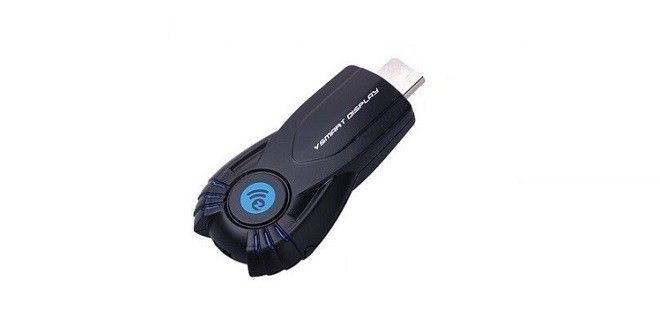

Visson V52A EZCast Wireless Display Adapter

EZCast V52A is a brand new Wireless Miracast / DLNA Display Dongle privately manufactured by Shenzhen Visson Technology Co., Ltd.Company sale and manufactures a large selection of Android products including their known VS ATV 106 Dual-Core Amlogic Set-Top Box that’s very popular on many retail (B2C) websites. Recently they also added a wide selection of new Wireless Display dongles based on Actions, Realtek, and Rockchip chipsets.

V52A dongle software is based on the EZECAST solution that offers a nicer UI user experience and wider Compatibility across multiple OS including a PC Mirroring option supported by Windows 7/8 operating systems. Special thanks to the Visson company for providing a test sample.

Product Features

Operating system: Linux OS
Supports 1080P video @30fps Video Playback
Supported Standards: DLAN, Airplay, and Miracast.
The EZCAST Cross-Platform software supports: iOS, Mac OS, Android, Windows
Built-in Android Miracast Support – Mobile devices with Android 4.2.1 and above.
Stream/Mirror Online & Local content on Smart Phones /Tablets/ TV/ Projector.
OTA (Over the Air) Firmware Updating Support (Online firmware updating service).
Watch and cast movies from YouTube, Netflix, Hulu, and Amazon to your TV.
Compatible with Android and Apple mobile devices.

Hardware Specifications

CPU: Actions AM8251 (600MHz/1GHz)
RAM: DDRⅢ-128MB
Storage: Flash 128MB
OS: Linux
UI: Standard UI

Software Support

EZCast: Support Windows/macOS/Android/IOS by EZCast APP(sharing local and streaming content to tv screen).
DLNA: DMP: Display photos, audio, and videos based on DLNA protocol Android
EZMirror(Miracast): Support Miracast function(certified with wifi display).
EZ Air (Airplay): Support ios airplay with EZ Air
Soft App: Cell phone can connect to EZCast-AP to another WIFI router
Remote Control: Android/Windows/IOS/MAC software： EZCast app
WiFi Module: (built-in wi-fi module) 802.11b/g/n 150Mbps 2.4Ghz
Video: MPEG-2, H.264,MPEG-4,at 1080P
Audio: MP3, WMA, OGG, WAVE.

Interfaces

output interface	HDMI 1.3 type A male
USB HOST	yes USB HSOT *1 for firmware update only
power	5V/500MAUSB cable USB type A to Micro USB
key	U-key(update resite)

Chipset: V5A Display Dongle hardware is based on AM8251 CPU from Actions Semiconductor Soc running at Clock speeds between 600MHz – 1GHz.

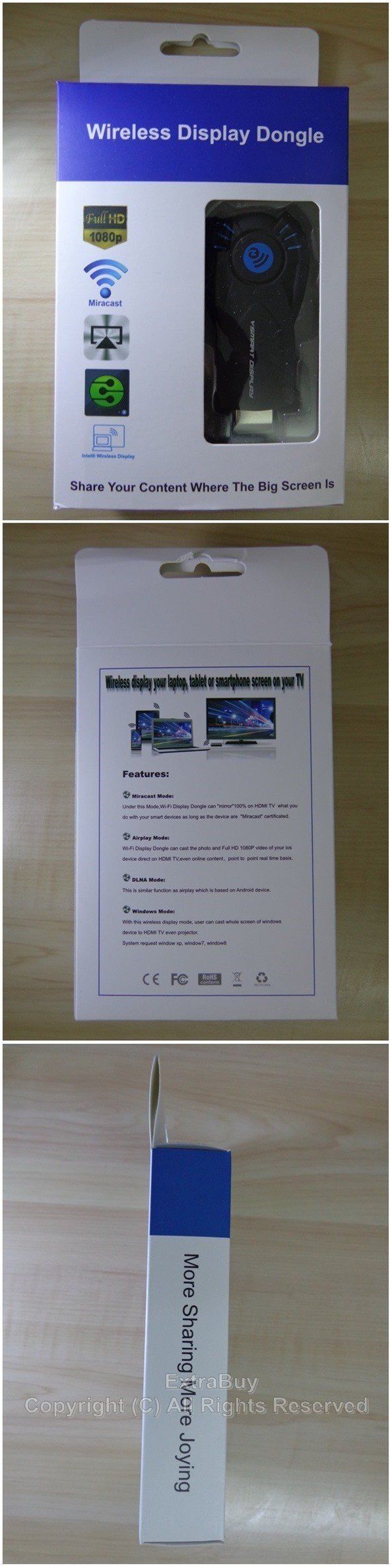

Package

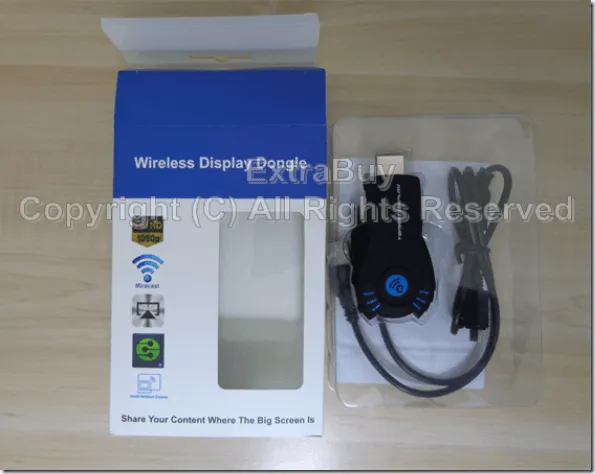

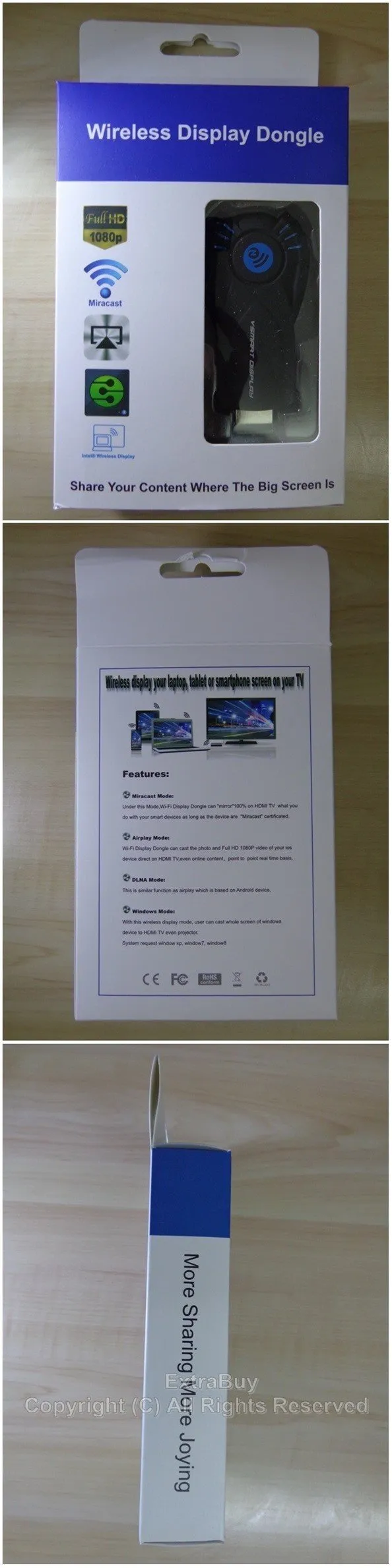

Unboxing

Accessories

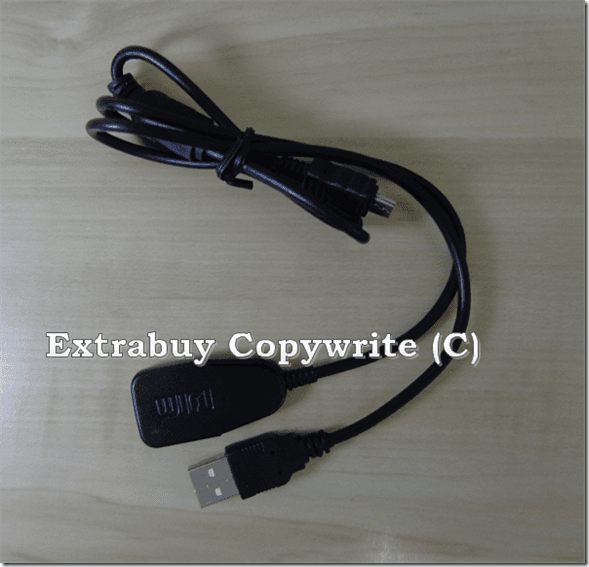

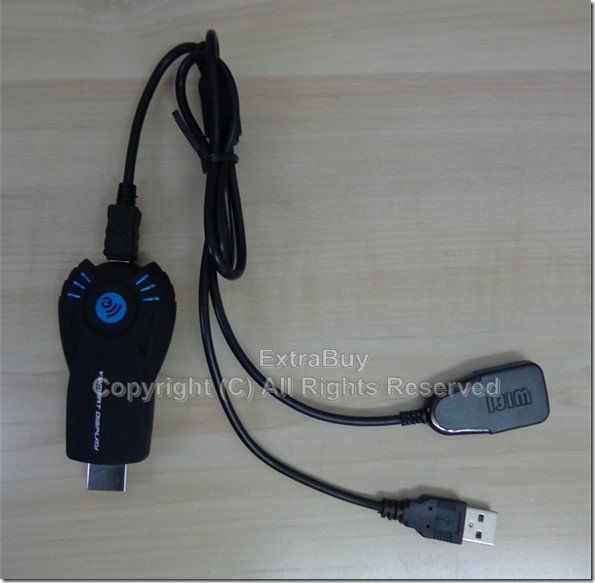

Two-Wire Spited USB Cable: External Wi-Fi (Antenna) & USB Male connector (Power)

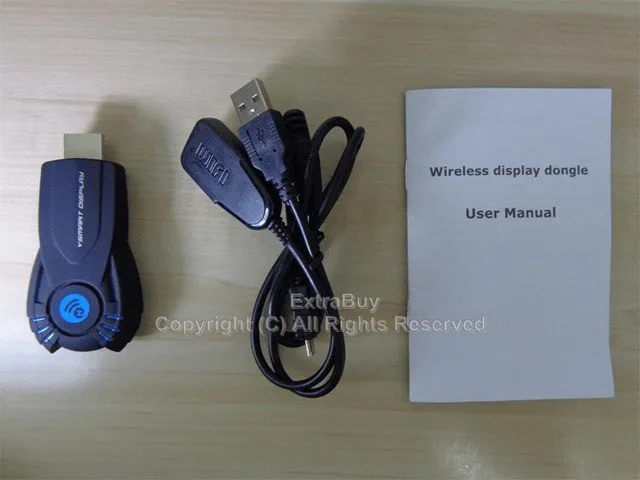

Items in Package:

1x EZCast V52A Wireless Display Dongle.
1x USB Cable.
1x User Manual.

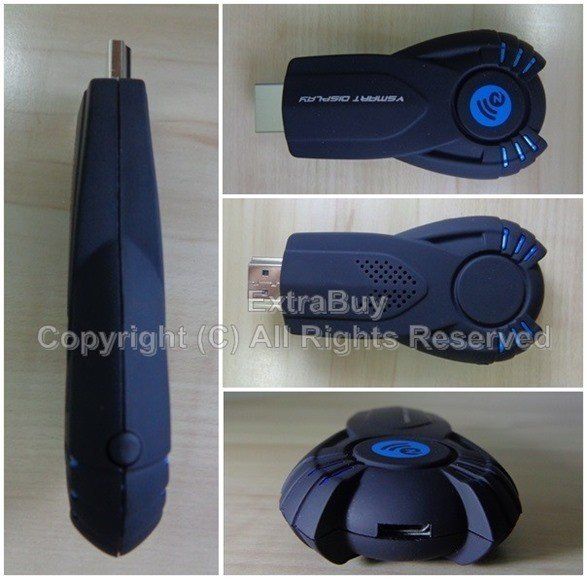

Design

High quality made from ABS plastic with rubber coating. The design resembles the Prometheus Spaceship Android Box design. On the bottom side, you can see vent holes in the “V” Shape agreement, and on the side you have the Reset & Firmware updated Button.

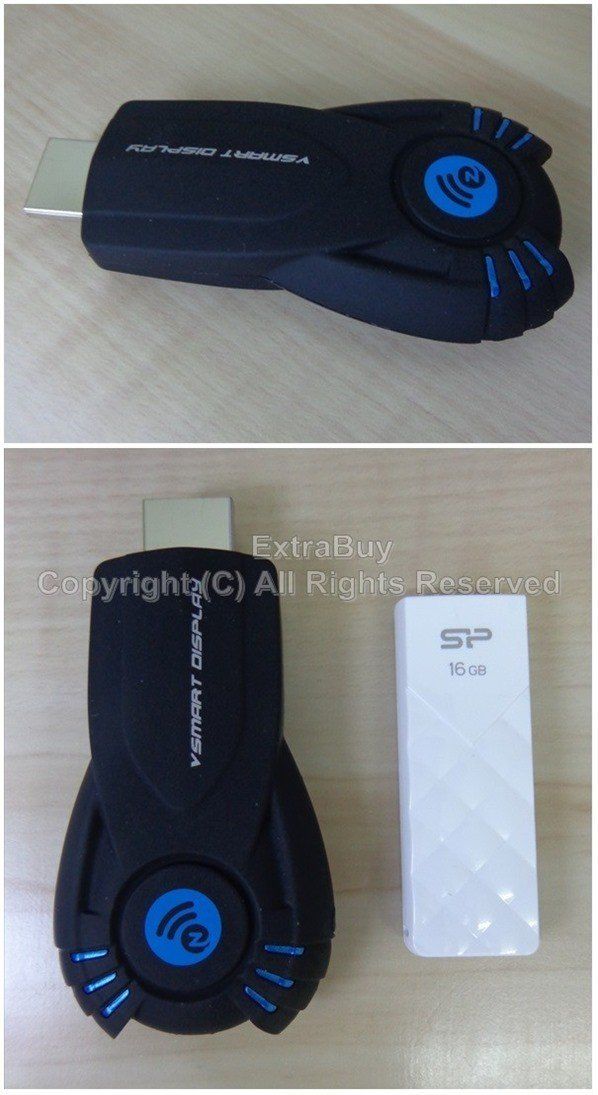

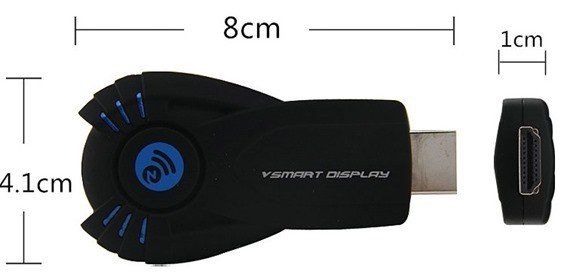

Dimensions

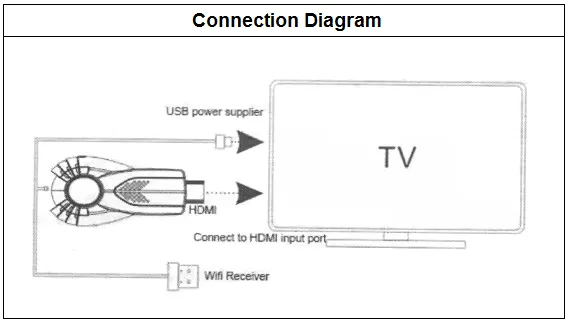

Operation

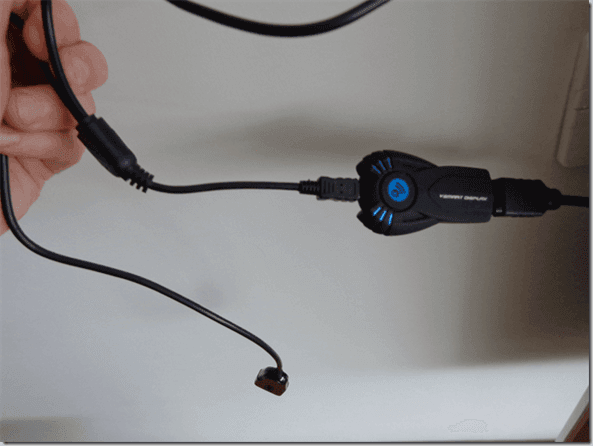

V52A Wireless Display Adapter Connected to USB Cable

Side View – V52A connected to the TV

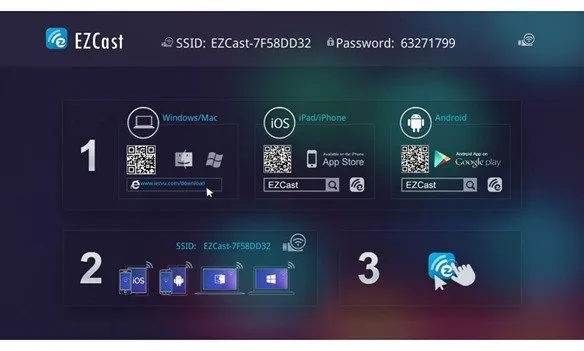

EZCAST Software Main UI

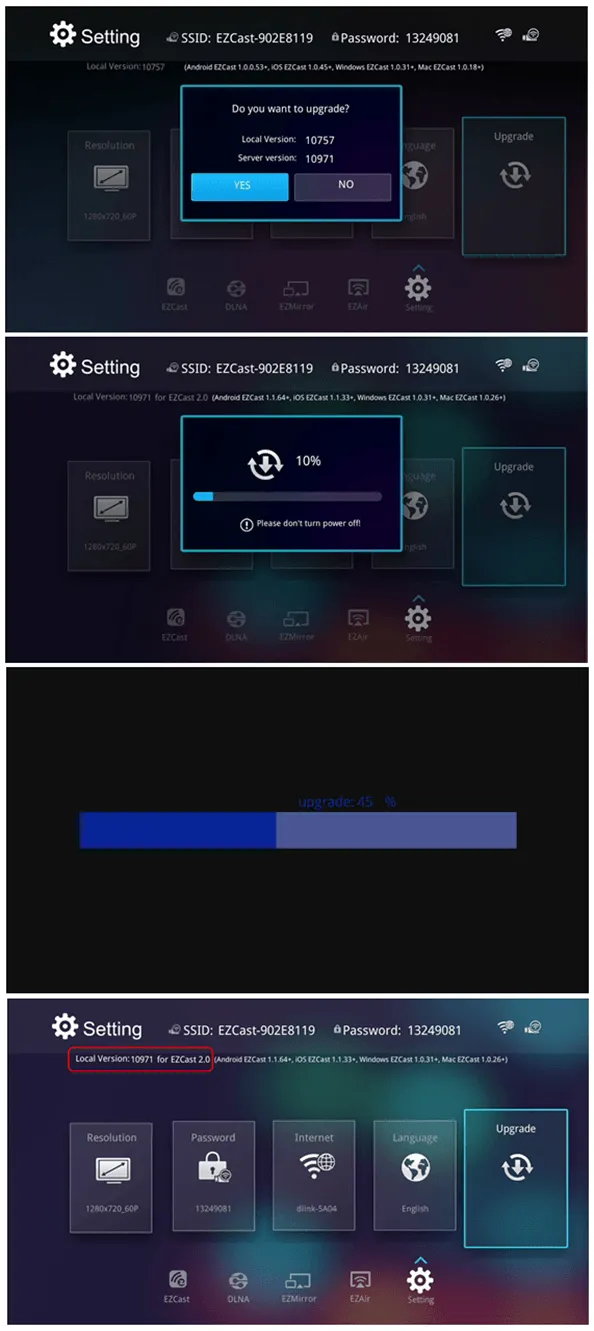

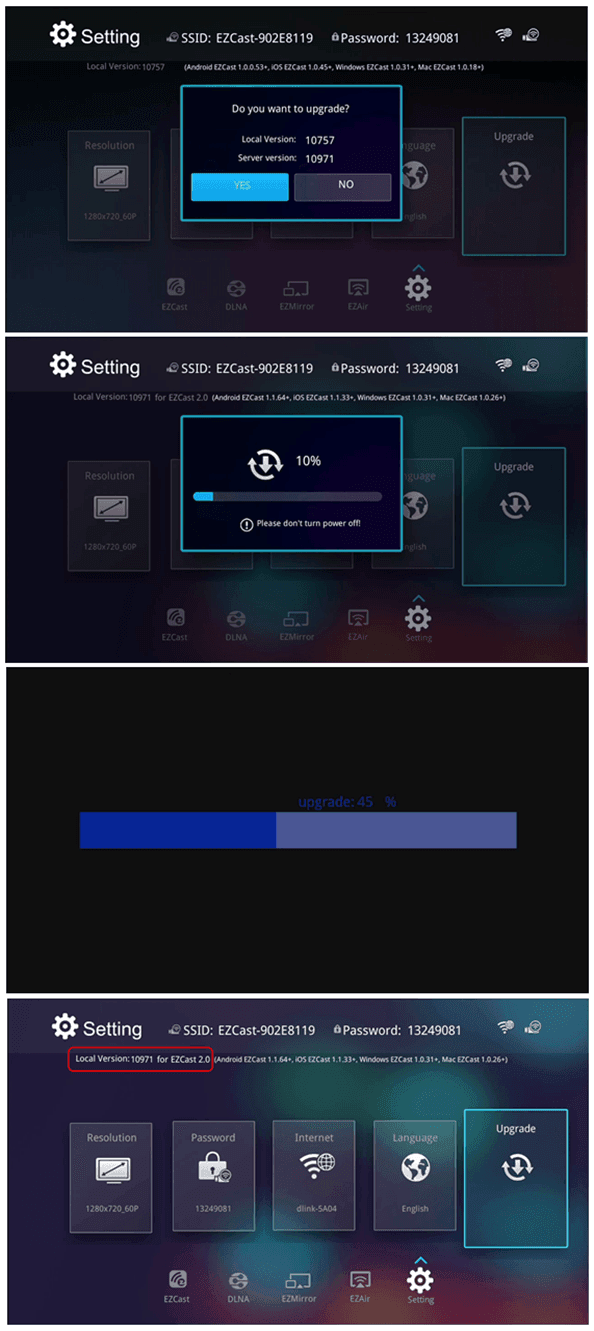

Over-the-Air (OTA) Firmware Updating Service

Photo – Casting photos
Camera – Mirroring Mobile Device Camera on TV
Music – Send Music Streams
Video – Steam video files via external video apps
Document – Casting documents from a mobile device’s local storage.
Web – Mirroring websites in Browser Mode.
Cloud Video – Support Cloud Storage-based services such as Google Drive, Dropbox Services, etc.
Update – Display notes on the latest firmware & APKs.
MirrorEZMirror – Miracast/Mirroring function ( Supported Mobile devices with Android OS V4.2.1 and above )
DLNA – Support External DLNA Based Apps: Skita, DlnaPlayer, MoliPlayer, flipps, etc.

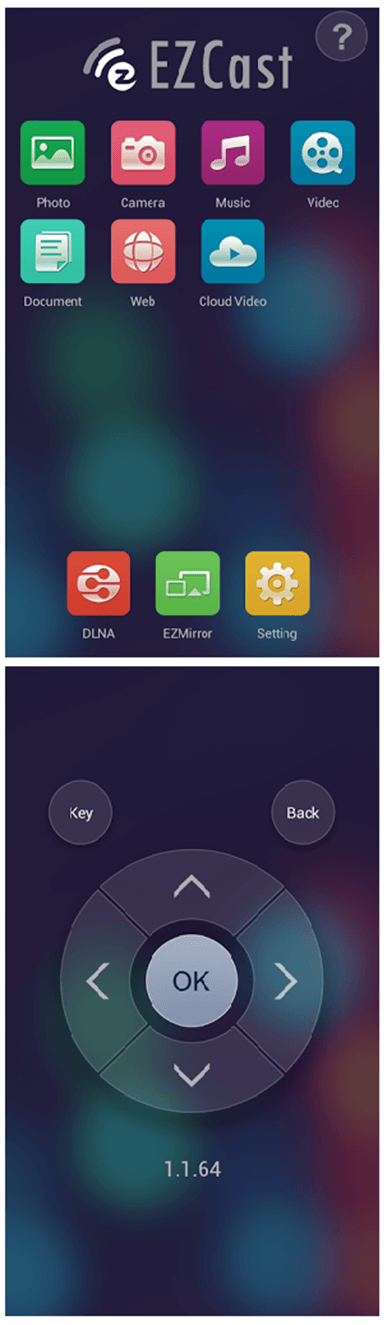

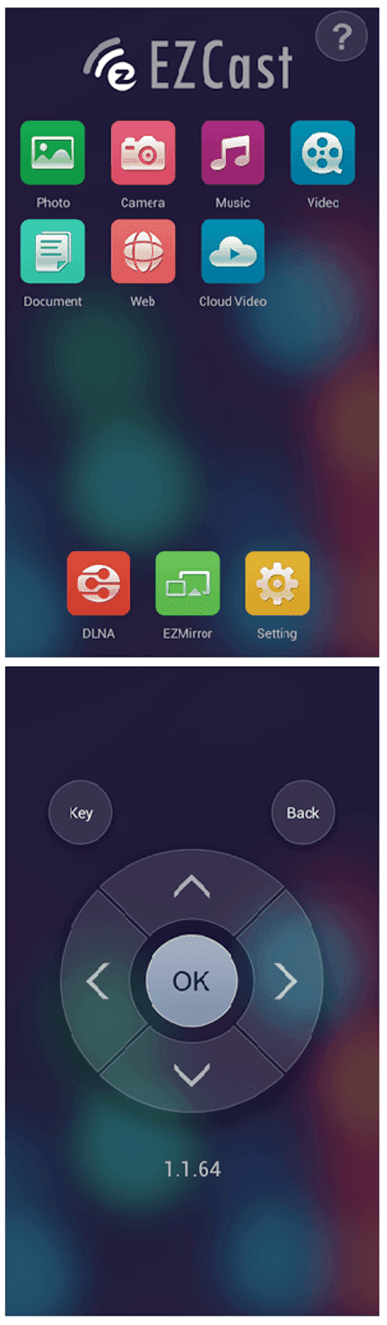

EZCAST Android Mobile App

Performance:

Testing Platform & Conditions

Internet connection: 100MB Cable Connection
Connection Type: Wireless
Approximated Distance from Access Point: ~10M
Environment: closed space (indoors)
Client Software: EZCAST Android App Ver. 1.1.108
Mobile Device: ZOPO 810 (Hardware: MT6589 Quad Core CPU, OS: Android 4.2.1 )

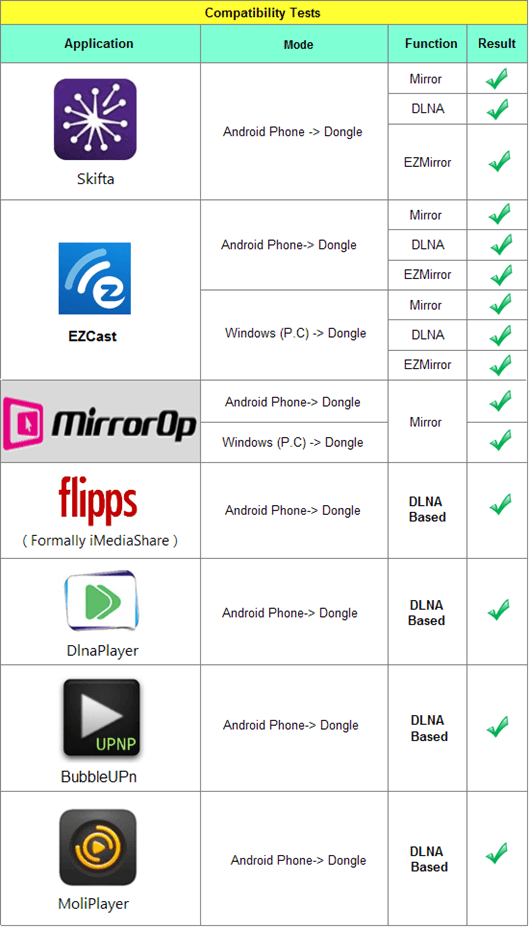

Note: All Applications listed in the table above are available in Google Market

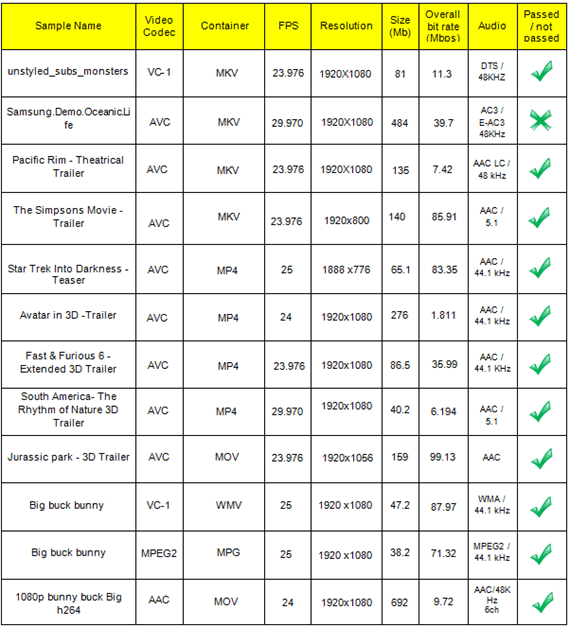

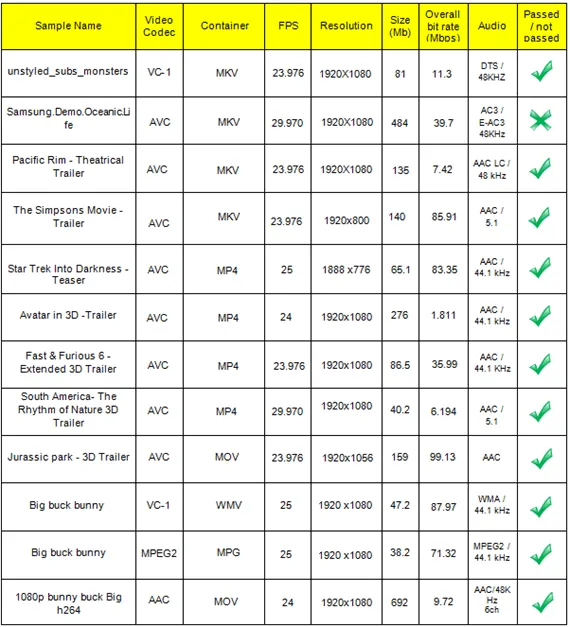

Note: Following Samples were tested with a DLNA Certified App named Skifta.

EZMirror

Works smoothly, I didn’t see any lags or frame skipping, playing 1080P video samples in MX Player. Browsing the internet in mirroring mode also worked fast without any glitches.

DNA

In DLNA Mode there were a few seconds of buffering right to start when I played high birthrate video samples, but it’s more related to the distance from my hotspot and bandwidth usage with DLNA technology. Highly recommended to use the EZMirror (Miracast) option as consumes less bandwidth and resources.
