Orange Pi 5 Plus is out, and here’s what we know

by androidpimp
0 comments
A+A-
Reset

Orange Pi 5 Plus

The Orange Pi 5 single board computer has gained attention from developers after a successful launch. The company has announced that they will be launching several highly anticipated products in the near future. In addition, they are working on a model with improved hardware based on the Pi RK3588 SoC named Orange Pi 5 Plus. This piece of hardware has all the core strengths of the Orange Pi 5 board but with a few strong advantages in the video department. These include two HDMI outputs next to an HDMI input interface, making the product an excellent choice for DVR and electronic signage applications.


Additional exciting features

The Orange Pi team added a GPIO header with 40 pins that are color-coded. It is compatible with the pin layout of the Raspberry Pi. In the connectivity section, Orange Pi also included a pair of 2.5G Ethernet ports. The board is highly likely to be used as a compact router/gateway device and is fully compatible with OpenWrt.

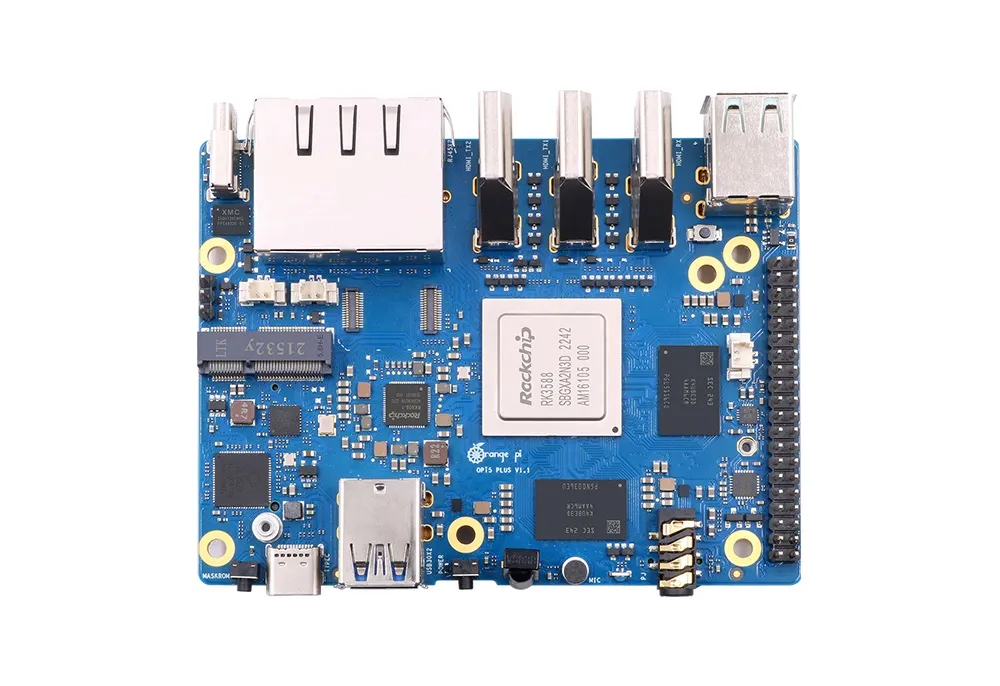

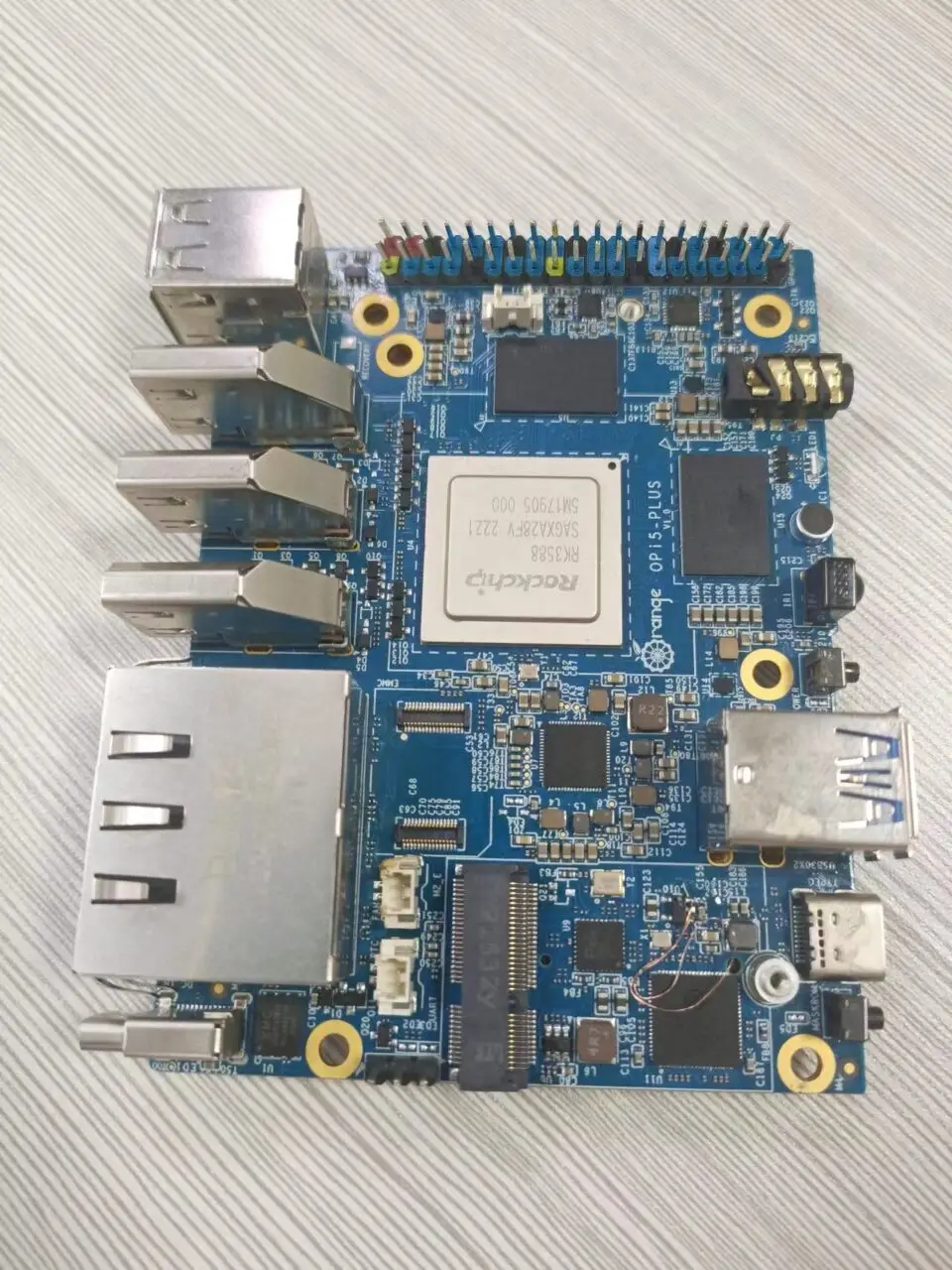

Orange Pi 5 Plus (First engineering sample)

Source: Orange Pi

Based on the above photo provided by Orange Pi company, the upcoming board will come with a PCIe interface and is equipped with at least three USB ports. Also we noticed that there is an option to add an eMMC module via an onboard expansion socket. Also, a microphone, IR transmitter, analog audio, power and reset buttons are included.


Specifications

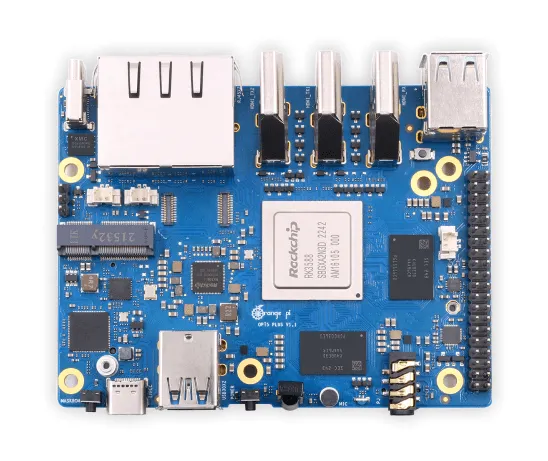

orange-pi-5

Orange Pi 5 Plus

(Product specification)

Brand

Orange Pi

Model

Orange Pi 5 Plus

SoC

Rockchip RK3588

CPU

8-core 64-bit processor:
• 4x Cortex-A76 cores @ up to 2.4 GHz

• 4x Cortex-A55 cores @ 1.8 GHz

GPU

• Arm Mali-G610 MP4 “Odin” GPU
• Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2, and Vulkan 1.2

• Hardware Acceleration Supported
• Max resolution: 8192x8192 source, 4096x4096 destination

NPU

Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation

PMU

RK806-1

VPU

8Kp60 H.265/VP9/AVS2 10-bit decoder, 8Kp30 H.264 decoder, 4Kp60 AV1 decoder, 8Kp30 H.265/H.264 encoder.

System Memory Configurations

4GB, 8GB, 16GB PDDR4x

eMMC socket

 Can support 16GB/32GB/64GB/128GB/256GB

SPI Flash

QSPI Nor FLASH: 16MB/32MB

Media Storage

MicroSD card slot

M.2 Interfaces

PCIe M.2 M-KEY Socket with PCIe 3.0 x4  (M.2 2280)

(typically used with NVMe SSD).

--------------------------------------------------------------------
PCIe M.2 E-KEY Socket with PCIe 2.0 x1 (M.2 2230)

(typically used with a wireless module).

Video Input

1x HDMI 2.0 input port up to 4Kp60

Video Output

• 2x HDMI 2.1 out up to 8k@60FPS
• 1x Type-C with DP TX 1.4A,up to 8K@30FPS
• 1 x MIPI DSI TX 4 Lane,up to 4K @60Hz

WiFi & Bluetooth

Possible, using an M.2 NVME to PCIe adapter.

LAN

2x 2.5GbE RJ45 ports via Realtek RTL8125BG controllers

Camera Interface

1x 4-lane MIPI-CSI compatible with MIPI V1.2

Touch Interface

Yes, Included

USB

• 2x USB3.0
• 2x USB2.0
• 1x Type-C

Audio

• 1xAudio 3.5mm jack with mic
• 1xMIC In
• 1xHDMI 2.1 eARC
• 1xSPK

Expansion

40-pin header:
• AUDDSM

• SDIO
• UART

• PWM

• PDM

• CAN

• I2C
• I2S
• SPI

Debug

3-pin 3.3V debug header (1,500,000 bps in firmware)

Buttons / Keys

• 1x MaskROM key (for eMMC updating)

• 1x Recovery
• 1x Reset key

• 1x Power (on/off)

LEDs

• Power LED (Red)

• Status LED (Green)

5V fan connector

Yes, Included

IR receiver

Yes, Included

RTC backup battery Interface

2-pin connector for battery for the HYM8563TS RTC

Power Supply

• 5V/4A

Dimensions

100 x 75 mm; mounting holes for heatsink; mounting holes in all four corner

Temperature Range

e – 0°C to +70°C

Weight

 86.5 grams

Software Support

• OpenWrt
• Orangepi OS(Droid) / Android 12
• Orangepi OS(Arch)

• Debian 11.x
• Rocky Linux

• CentOS

• Ubuntu 22.04

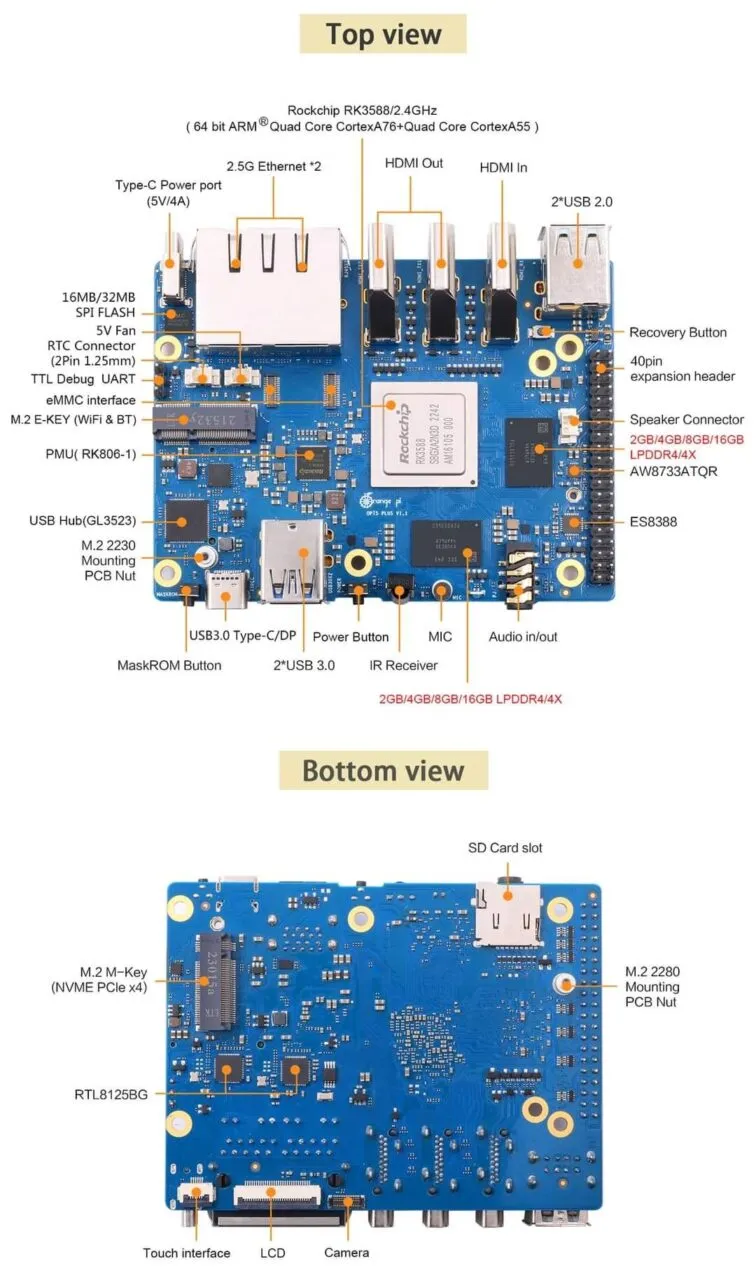

Interfaces


Price and availability

The Orange Pi 5 Plus will be available soon in the following configurations and prices:

  • OPi5 Plus 4GB—-89.9USD/piece
  • OPi5 Plus 8GB—-109USD/piece
  • OPi5 Plus 16GB—129USD/piece

Orange Pi 5 Plus variants (Models)

Package Name

Configuration

Package Content

Price

Orange Pi 5 Plus

8GB RAM

Bare board only

$109.00

Orange Pi 5 Plus

 16GB RAM

Bare board only

$129.00

Orange Pi 5 Plus

(Set 1)

16GB RAM

Bare board

+

Power supply

$137.90

Orange Pi 5 Plus Shell
(Optional)

-

Metal Case with Antennas

N/A

This site contains affiliate links to products. We may receive a commission for purchases made through these links.

Updated on 7 of June, 2023

Final notes

You should remember that all Plus 5 variants lack integrated Wi-Fi and Bluetooth support. The PCIe M.2 E-KEY socket allows you to install a 2230 module separately.

In addition, if you are not planning on using an NVMe storage card, the eMMC is also a cheaper option via an onboard socket. Orange Pi offers storage sizes ranging from 16GB to 256GB which should be enough to run OpenWRT and most Linux distributions.
